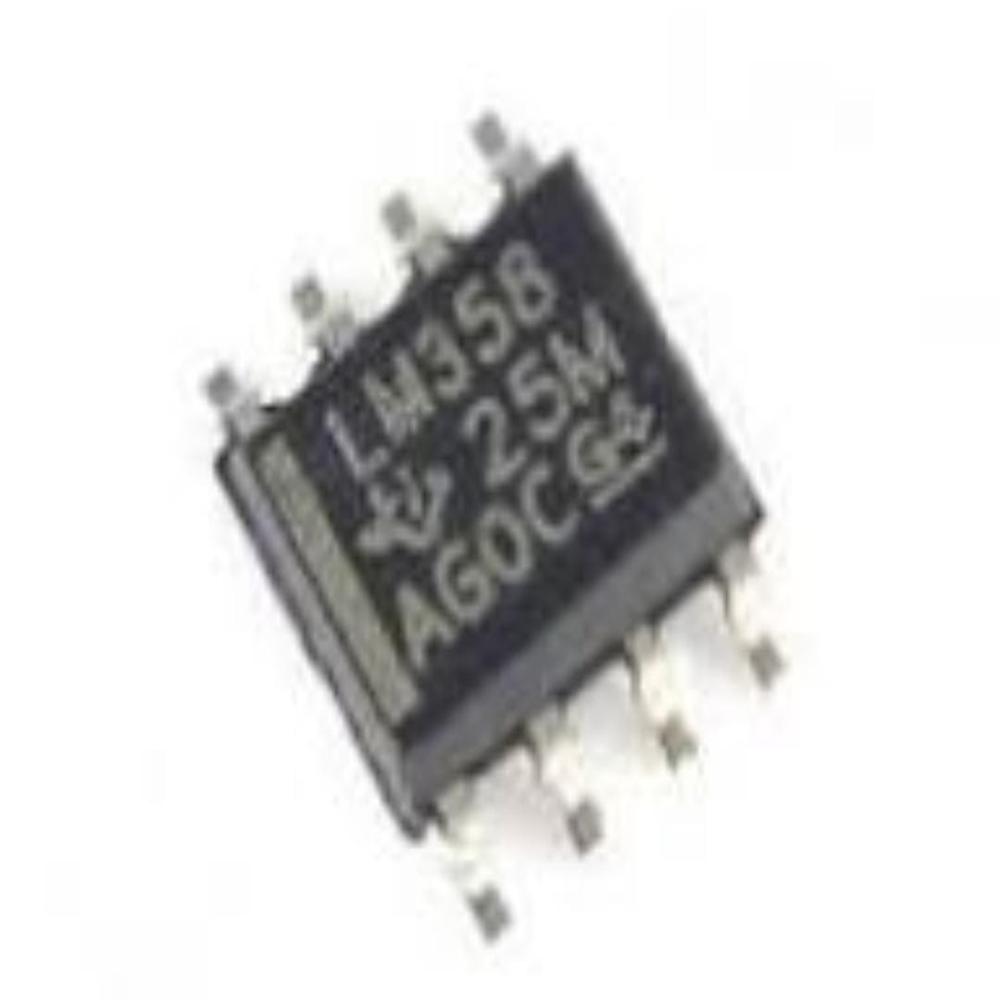

LM358DR IC

LM358DR IC
LM358DR IC

LM358DR IC Specification

  • Thermal Conductivity
  • Standard for SOIC-8, value not specified
  • Components
  • 2 Independent Op-Amps in one package
  • Response Time
  • Slew Rate: 0.3 V/s (typical)
  • Input
  • Differential
  • Features
  • Low Supply Current, Internally Frequency Compensated, Short Circuit Protection
  • Interface
  • Analog
  • Power Source
  • External DC Supply
  • Output
  • Single-ended
  • Power Supply
  • Single or Dual Supply
  • Operating Temperature
  • -40C to +85C
  • Usage
  • Analog Signal Amplification
  • Product Type
  • Integrated Circuit (IC)
  • Application
  • General Purpose Amplification, Signal Conditioning, Active Filters, Integrators, Summing Amplifiers
  • Rated Voltage
  • 3V to 32V (Single Supply)
  • Supply Voltage
  • 3V to 32V or 1.5V to 16V
  • Size
  • SOIC-8 Package
  • Dimension (L*W*H)
  • 4.9mm x 3.9mm x 1.5mm (typical SOIC-8)
  • Function
  • Dual Operational Amplifier (Op-Amp)
  • Color
  • Black
  • Weight
  • Approximately 0.1 g
  • Current Rating
  • 700 A per amplifier (typical)
  • Thickness
  • Standard SOIC-8 Thickness
  • Frequency
  • Unity Gain Bandwidth: 1 MHz (typical)
  • Package Type
  • SOIC-8
  • Amplifier Type
  • General Purpose, Dual
  • ESD Protection
  • Standard IC level
  • Number of Pins
  • 8
  • Output Drive Capability
  • Can source and sink moderate current (to directly drive loads)
  • Input Offset Voltage
  • 2 mV (typical)
  • Common Mode Input Voltage Range
  • Includes ground (0V)
  • RoHS Status
  • Compliant
  • Cross Talk
  • Negligible/Low


LM358DR IC Trade Information

  • Minimum Order Quantity
  • 100 Pieces
  • Delivery Time
  • 2 Week


LM358DR IC About

These devices provide outstanding value for cost-sensitive applications, with features including low offset (300V, typical), common-mode input range to ground, and high differential input voltage capability.

Versatile Dual Op-Amp for General Purpose Applications

The LM358DR offers two independent operational amplifiers within a single SOIC-8 package, making it adaptable to a broad range of analog applications. Its compatibility with single or dual supply voltages between 3V and 32V accommodates various power configurations, ensuring usefulness in active filters, signal conditioning, integration, and numerous amplification tasks.


Reliable Performance Across Conditions

Engineered for a wide operating temperature range from -40C to +85C, the LM358DR guarantees stability and consistent performance in demanding environments. With low input offset voltage, minimal crosstalk, and standard ESD protection, the device delivers both precision and durability for long-term analog signal processing.

FAQ's of LM358DR IC:


Q: How can I use the LM358DR in general signal amplification circuits?

A: The LM358DR is designed for general purpose analog amplification, making it suitable for applications like active filters, integrators, summing amplifiers, and signal conditioning. Its dual op-amp configuration allows two independent amplification channels within a single SOIC-8 device.

Q: What are the benefits of the LM358DR's wide supply voltage range?

A: Supporting single supply operation from 3V to 32V and dual supplies from 1.5V to 16V, the LM358DR offers great flexibility in circuit design, accommodating both low-voltage and standard analog systems without the need for extensive adaptation.

Q: When should I consider using the LM358DR in my designs?

A: You should use the LM358DR when you require a reliable, general-purpose dual op-amp with low offset voltage, moderate output drive, and compatibility with a broad range of supply voltages, particularly in cost-sensitive or space-constrained applications.

Q: Where is the ideal application environment for the LM358DR IC?

A: The LM358DR is well-suited for use in analog signal processing circuits, including consumer electronics, industrial controls, medical instrumentation, and educational prototyping, thanks to its robust operating temperature range and compact SOIC-8 form factor.

Q: What process safeguards are included in the LM358DR for circuit protection?

A: The LM358DR integrates standard IC-level ESD protection and built-in short circuit protection, helping to prevent damage during handling or in the event of electrical faults, thus enhancing circuit reliability and operational safety.

Q: How does the LM358DR address output drive requirements?

A: This IC features moderate output current sourcing and sinking capability, allowing it to directly drive many types of analog loads without additional buffer stages, making circuit design simpler and more efficient.
